Types of Semi-Trailers Explained

Understanding the different types of semi truck trailers available and matching the right one to your operational needs can be the difference between a profitable transport business and one that’s struggling to optimise freight volumes and loads.

In this comprehensive guide, we walk you through every semi-trailer type available from our range and how to choose the right one for your business.

What Is a Semi-Trailer?

A semi-trailer is a type of trailer designed to be pulled by a prime mover, carrying a significant portion of its weight on the towing vehicle rather than being fully self-supporting. The term ‘semi’ comes from the fact that the trailer has wheels only at the rear, relying on the prime mover’s fifth-wheel coupling to support the front portion, making it a ‘semi-independent’ unit.

This design differs fundamentally from a full trailer, which has both front and rear axles that support its weight independently. Semi-trailers connect to the prime mover via a kingpin that locks into the fifth wheel, creating an articulated joint that allows the combination to navigate corners and uneven terrain while distributing weight efficiently across multiple axles.

Semi-Trailer Types

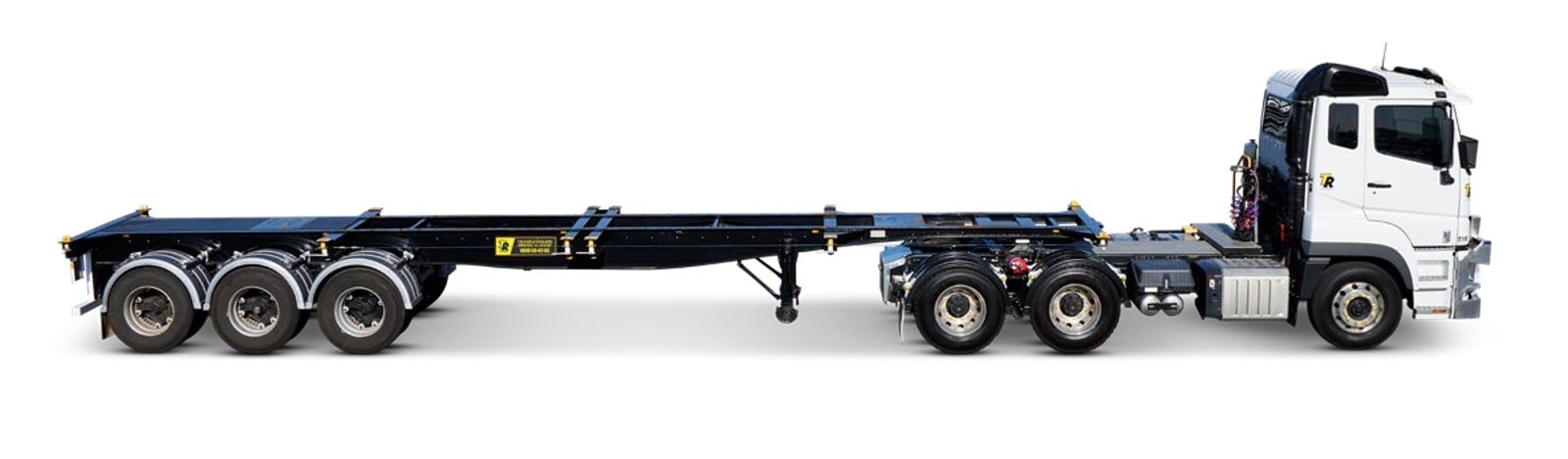

Skeletal Trailers

These versatile and efficient semi-trailer types are the backbone of container transport, featuring a minimalist steel frame designed to carry shipping containers.

The lightweight construction maximises payload capacity, while twist locks provide secure container mounting in seconds. Whether you're moving containers from ports to distribution centres, handling intermodal freight, or managing import-export logistics, skeletal trailers offer the most efficient solution.

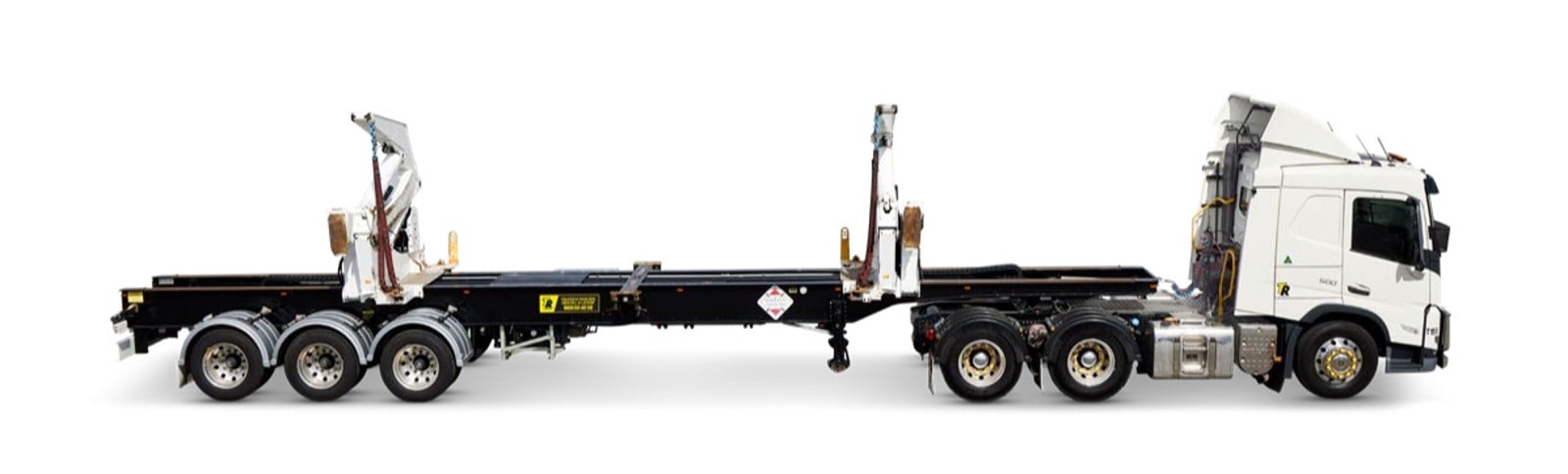

Sideloader Trailers

Sideloaders combine transport and self-loading capabilities in one sophisticated unit, eliminating the need for cranes or container handlers at delivery sites. They use integrated hydraulic systems to lift containers from ground level and slide them onto the deck in minutes.

Perfect for remote deliveries, construction sites with limited crane access, and operations requiring frequent small-batch deliveries, sideloaders save time and eliminate recurring crane hire costs.

Flat Top Trailers

Perform easy loading from all sides with an open platform design that makes flat tops ideal for construction materials, machinery, steel, timber, and oversized loads.

While weather exposure requires appropriate load securing and tarping, the accessibility and versatility make flat tops indispensable for construction, manufacturing, steel fabrication, and agricultural operations across Australia.

Tautliner/Curtainsider Trailers

These semi-trailer types combine weather protection and loading flexibility through retractable curtain sides. Side curtains retract easily to allow forklift loading from either side with rear doors providing conventional loading access.

Tautliners are popular for urban deliveries where multiple drops and varied loading conditions demand flexibility without compromising cargo protection.

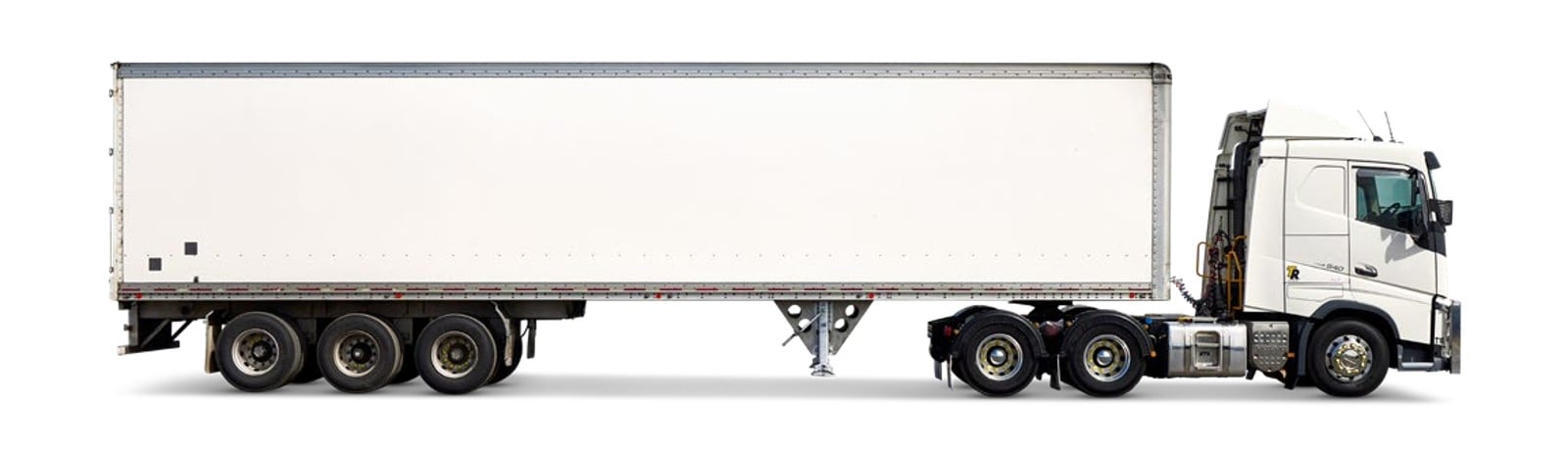

Dry Vans

These fully enclosed, weather-tight transport options are perfect for cargo that requires maximum protection. The solid walls and roof protect against weather, dust, and theft—a critical feature for transporting high-value electronics, furniture, packaged retail goods, and any freight where exposure isn’t acceptable.

Ideal for any operation where cargo security and condition are important, dry vans deliver peace of mind that your freight arrives exactly as it was loaded.

Refrigerated Vans

Refrigerated trailers maintain precise temperature control for cold chain logistics, with temperature ranges suitable for a wide range of products, including fresh produce, frozen goods, and pharmaceuticals.

Given the potential cost of spoiled products or health violations, reliable refrigeration equipment is essential.

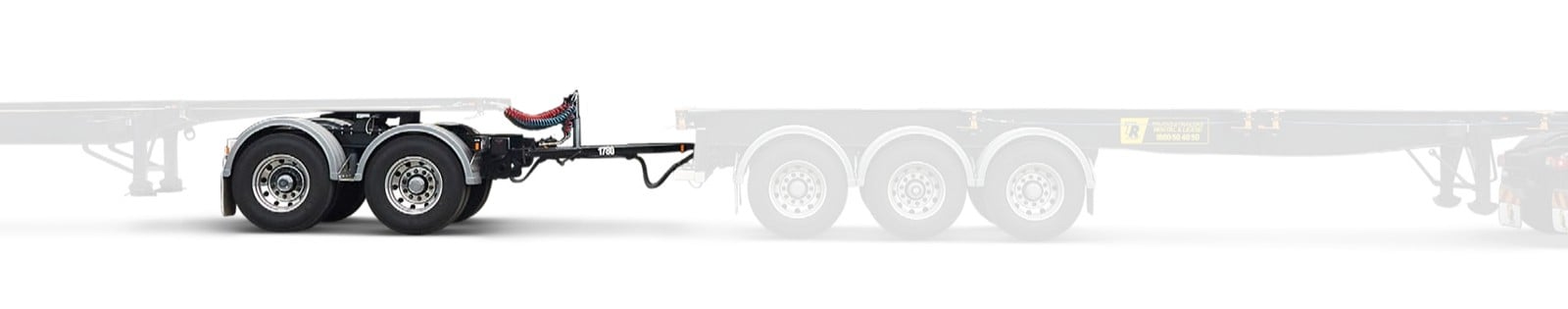

Dollies

These converter units connect multiple trailers to create B-double or road train combinations. By enabling combination vehicles, dollies allow operators to move significantly more freight per trip, reducing per-tonne transport costs and improving driver productivity.

Common in long-haul interstate freight, combinations using dollies are essential for operations where volume and efficiency directly determine profitability.

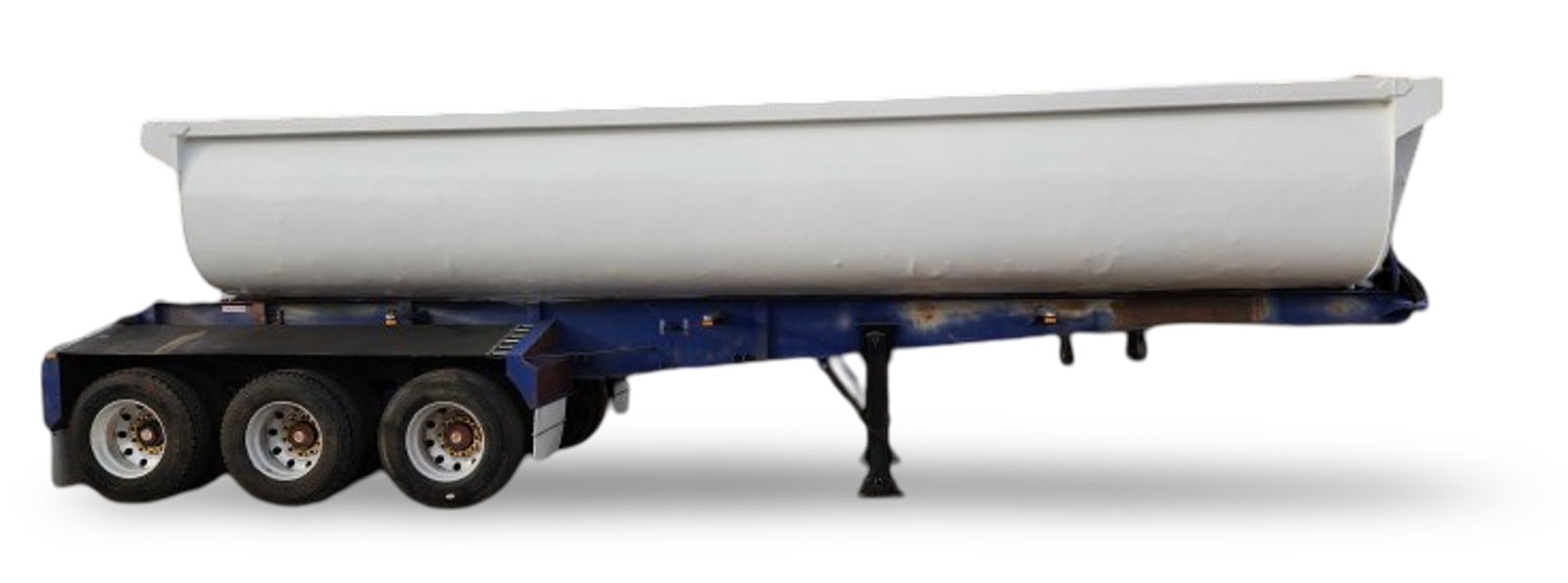

Side Tipper Trailers

As their name suggests, these types of semi-trailers utilise hydraulics to tip loads sideways rather than rearward, making them ideal for handling bulk materials in mining, construction, and agricultural operations.

The side-tipping action offers advantages over conventional rear tippers in certain applications, including faster unloading in some configurations, suitability for sites with limited rear access, and safer operation in specific conditions. Enquire about our Side Tippers here.

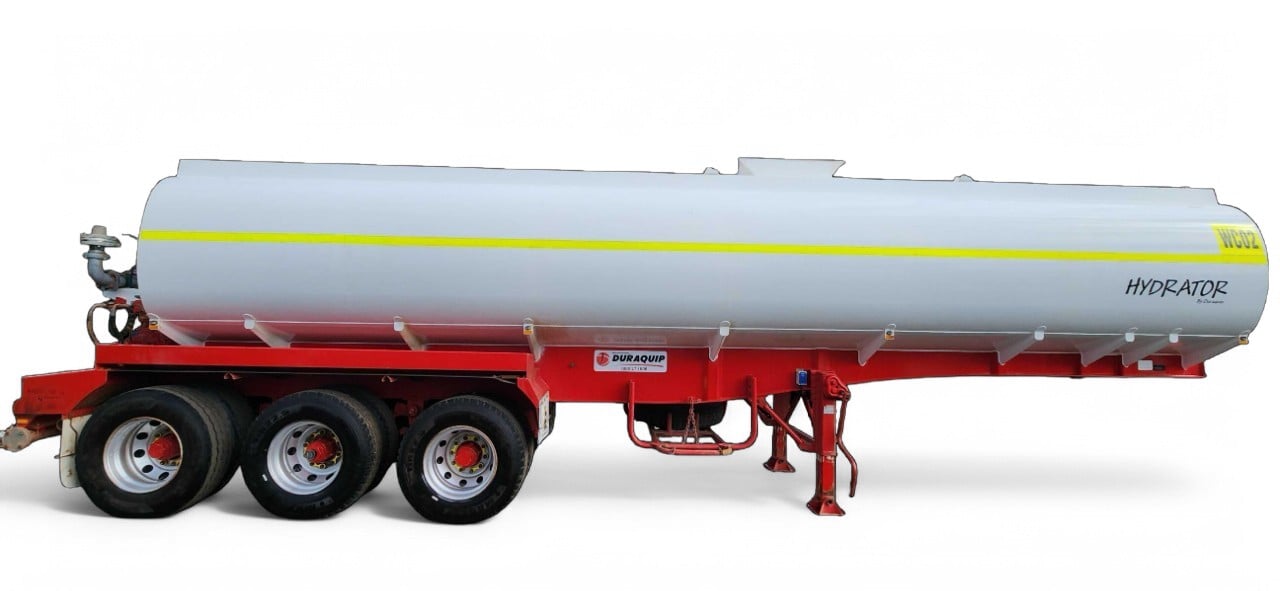

Water Tankers

These specialist units serve critical functions in dust suppression, road construction, mining operations, and fire-fighting support. Operators can manage spray bars and discharge from a safe distance with remote control operation, improving safety and efficiency.

Civil contractors, mining companies, councils, and construction firms utilise water tankers where dust control, compaction, or water delivery is an essential part of their operations.

How to Choose the Right Semi-Trailer Type for Your Business

Assess Your Cargo and Operations

Start with the fundamentals: what are you transporting? Shipping containers demand skeletal trailers, palletised retail goods suit tautliners, and temperature-sensitive produce requires refrigerated vans. The cargo itself eliminates many options immediately, pointing you clearly toward the configurations that will actually work.

Beyond the cargo, your operational patterns shape which trailers will serve you best. Short urban runs with multiple drops favour quick-access trailers, such as tautliners, while long-haul interstate freight may benefit from enclosed vans or B-double combinations that maximise efficiency over distance.

Consider Access and Compliance

Even the perfect trailer for your cargo becomes useless if it can't physically reach your destination. For example, some roads might prohibit B-doubles, bridges impose weight limits, and urban areas feature height restrictions that rule out certain configurations.

Research your regular routes and identify constraints before committing to specific trailer types.

Equally important are your loading facilities. Delivering to sophisticated distribution centres with forklifts and dock levellers provides numerous options. However, if you're servicing construction sites or rural properties without infrastructure, you'll need sideloaders for containers, flatbeds with side access, or trailers with integrated ramps that don't rely on external equipment.

Look Beyond Purchase Price

When you purchase trailers outright, you're effectively gambling on their resale value years down the track, with technology changes, evolving regulations, and shifting market demand all affecting what your assets will be worth when replacement time arrives.

Different types of semi-truck trailers also carry vastly different maintenance requirements. When evaluating the total cost of ownership, it’s essential to factor in realistic maintenance costs, downtime for repairs, parts expenses, and operational disruptions resulting from equipment unavailability, as these ongoing costs often significantly outweigh the initial purchase price differential.
